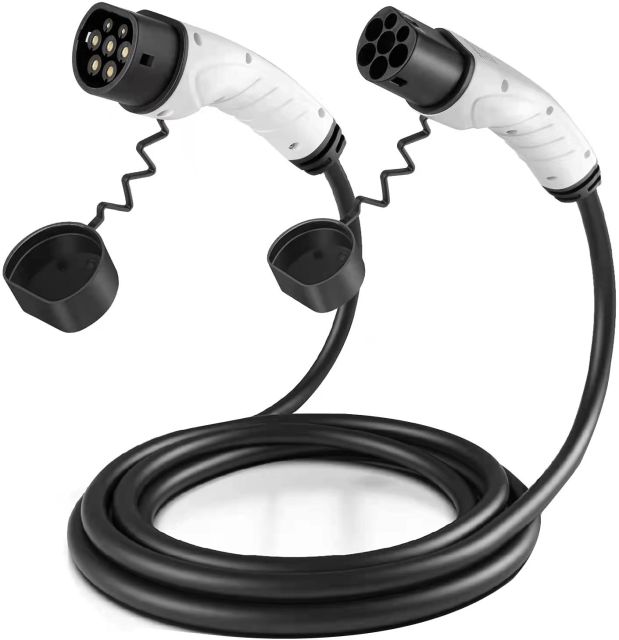

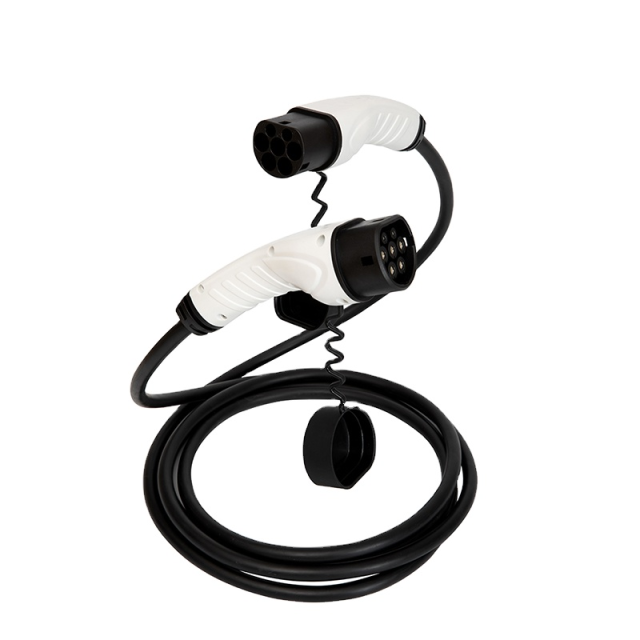

Rated Current: 16A or 32A Type2 to Type2 EV charger adaptor（5M) Cable material:TPU Operating Voltage: 250V or 415V Mechanical life: No-load plug in/pull out> 10000times Coupled insertion force: >45N<80N Impat of external force: can afford 1 m drop and 2t vehicle run over pressure Insulation resistance:> 1000MΩ(DC500V) Terminal temperature rise: <50K Withstand voltage: 2000V Contact Resistance: 0.5mΩ Max contact bush: Copper alloy, silver plating Pin: Copper alloy, silver+ thermoplastic on the top Operating temperature:-30℃ ～＋ 50℃ Cable specification: 16A single phase 3*2.5mm2+2*0.5mm2 16A three phase 5*2.Smm2+2*0.5mm2 32A single phase 3*6mm2+2*0.5mm2 32A three phase 5*6mm2+2*0.5mm2 Cable color: black Charging standard: IEC62196-2
