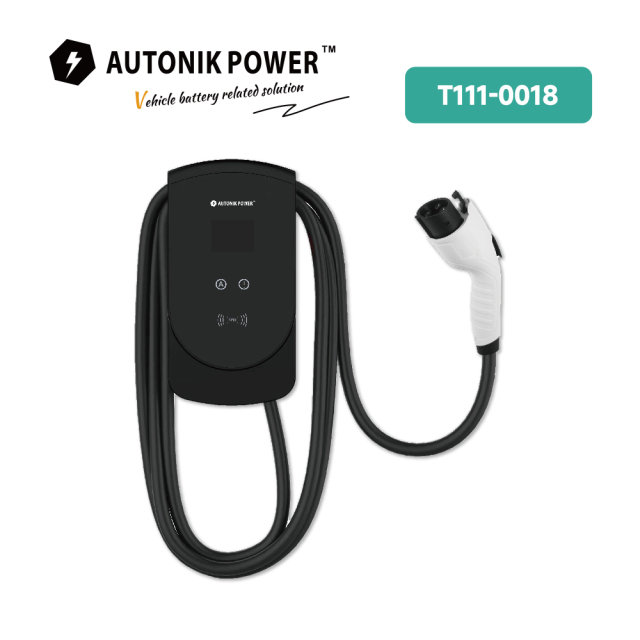

Type2 /7KM wallbox EV Charger
Model.T111-0018

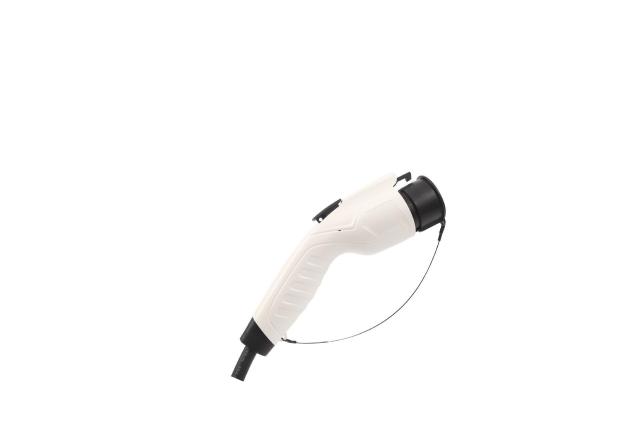

Type2 wallbox EV charger 5M
Cable material:TPU
Rated Current: 7KW:Adjustable current 8A,10A,13,16A,32A
11KW: Adjustable current 8A,10A,13,16A
22KW: Adjustable current 8A,10A,13,16A,32A
Operating Voltage: 7KW:250V ,11/22KW:415V
Mechanical life: No-load plug in/pull out> 10000 times
Coupled insertion force: >45N<80N
Impat of external force: can afford 1 m drop and 2t vehicle run over pressure
Insulation resistance:> 1000 MΩ(DC500V)
Terminal temperature rise: <50K
Withstand voltage: 2000V
Contact Resistance: 0.5mΩ Max
contact bush: Copper alloy, silver plating
Operating temperature: -30℃ ～＋ 50℃
Cable specification: 32A 3*6mm2+2*0.5mm2
Cable color: black
Charging standard: IEC62196-2
