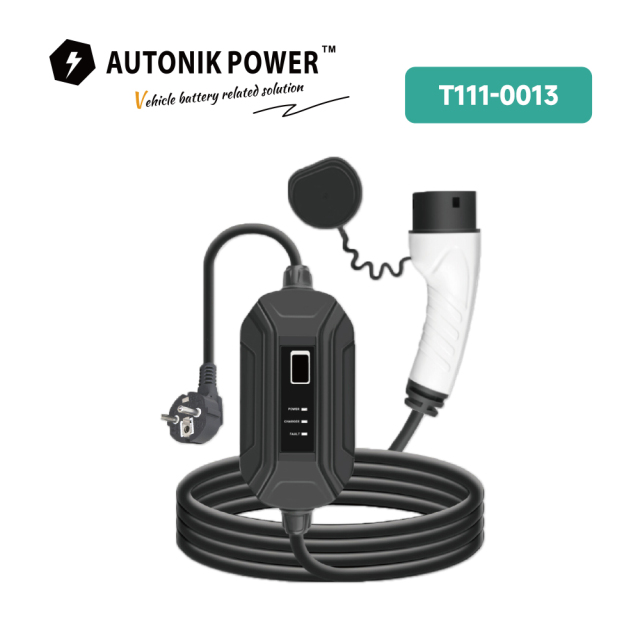

16A Portable Electric E-Vehicle Charger
Model.T111-0013
Rated Current: 16A Type2 EV charger (5M)
Cable material:TPU
Operating Voltage: 250V
Mechanical life: No-load plug in/pull out> 10000times
Coupled insertion force: >45N<80N
Impat of external force: can afford 1 m drop and 2t vehicle run over pressure
Insulation resistance:> 1000MΩ(DC500V)
Terminal temperature rise: <50K
Withstand voltage: 2000V
Contact Resistance: 0.5mΩ Max
contact bush: Copper alloy, silver plating
Operating temperature: -30℃ ～＋ 50℃
Cable specification: 16A 3*2.5mm2+2 0.5mm2
Cable color: black
Charging standard: IEC62196-2
